The XL-150S uses a desktop layout that isolate the transmission parts and molds. The transmission parts are under the table and the molds are on the table, and this layout facilitates cleaning and maintenance. The machine adopts automatic spray lubrication, longitudinal shaft drive structure, barrel cylindrical dividing mechanism and gear transmission, to ensure the stability and quality of the whole machine. For electrical components, use PLC, photoelectric tracking and servo feed. Such machines have a production capacity of up to 120-150 / min and are suitable for producing 5-16 oz cold / hot cups.
Inquiry|

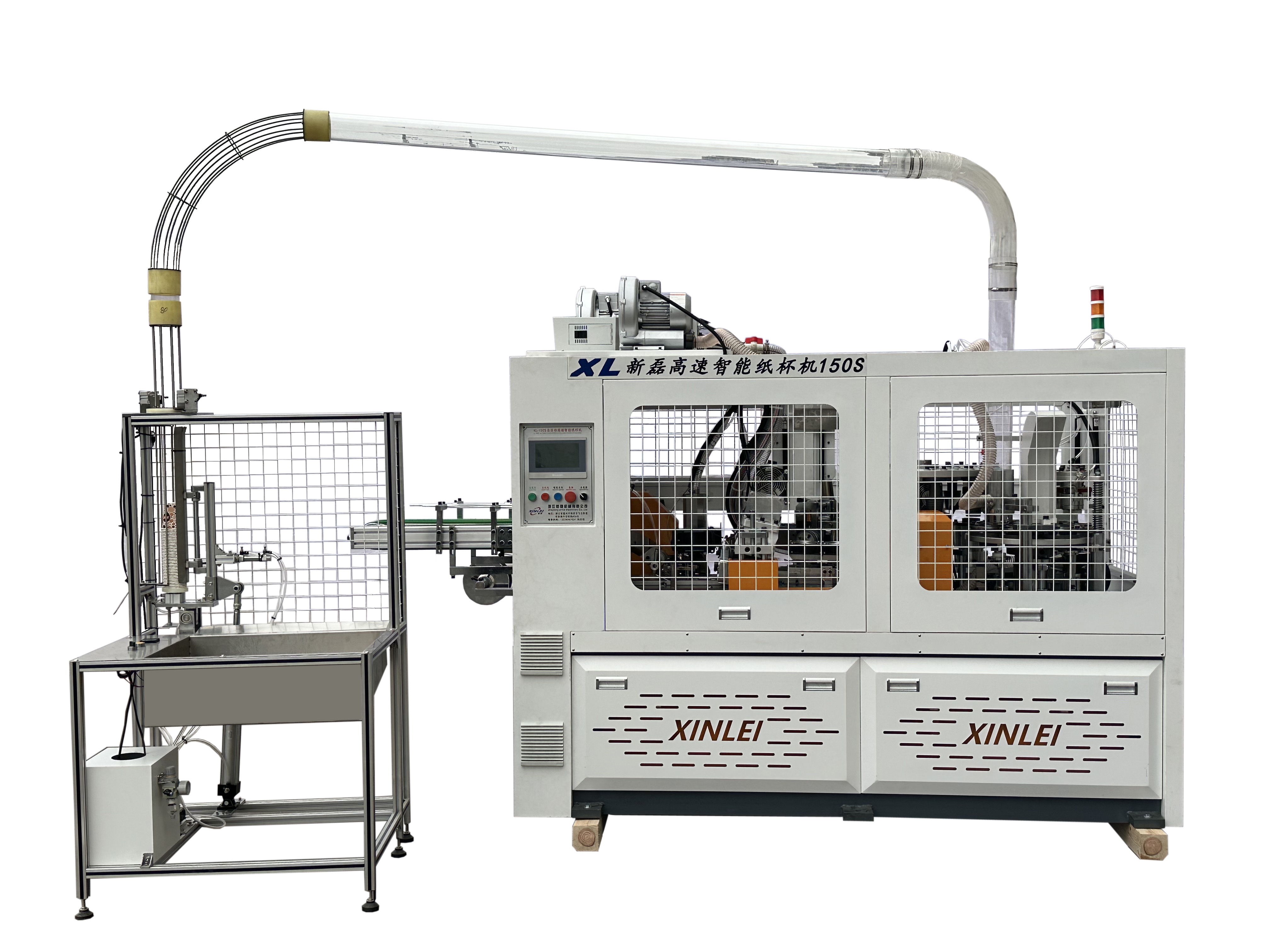

High speed paper cup machine XL - 150S |
|
|
重量 weight |
3200 kg |
|
机器装箱规格（无木箱）size(without woodencase) |
长2900 x 宽1300 x 高1950mm |
|
电源配置voltage |
三相 380V，25KW |
|
压缩空气配置air supply |
0.6-0.8MPa，0.5m³/min |
|
产能speed |
120-150 pcs/min |
|
纸张种类paper material |
single and double PE/PLA |
|
纸张克重paper weight |
210-330g/㎡ |
|
纸杯规格cup size
|
(D1 top) ф50-90mm
(D2 bottom) ф40-65mm
(H height) 50-138mm
(h bottom depth) 5-12mm |
|
控制屏touch screen size |
7 inch |
|
Collation table size |
1000 x 700 x 1600mm |
