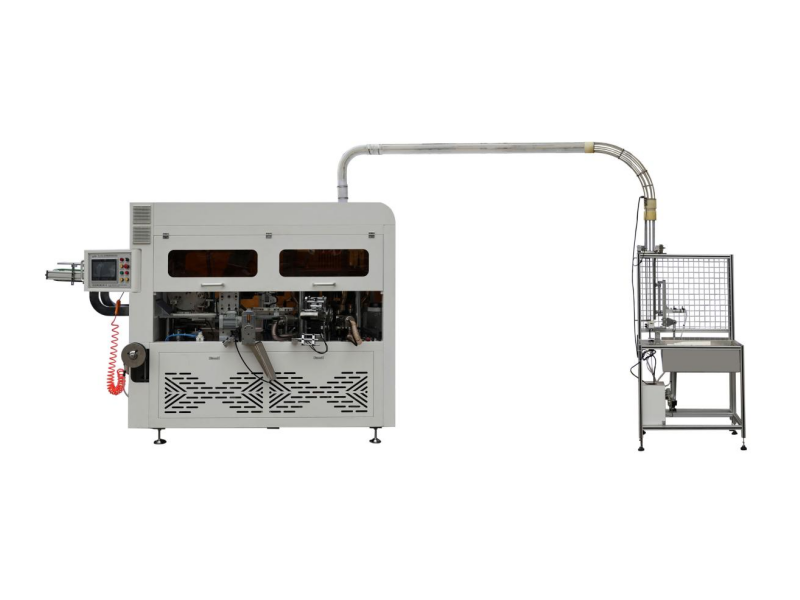

智能控制系统 intelligent control system

1. 多型号模组。使用简单的窗口提示进行指导，选择设置的模型。

 Multiple model modules. Use simple window prompts to guide you to select the model you want to set up.

2.  灵活的参数设置。您可以备份，还原或将参数还原到出厂。您也可以手动详细修改参数。

Flexible parameter settings. You can back up, restore or restore the parameters to factory. You can also modify the parameters manually in detail.

3.  灵活的编码器原点设置和方向自动设置以及故障自检。编码器的硬件安装不需要考虑位置，只需设置软件即可。

Flexible encoder origin setting, automatic direction setting and fault self-checking. The encoder hardware installation does not need to consider the position, only the software needs to be set.

4.  自动配置停车位，不到一圈快速低落。配置后，机器会自动计算机器的惯性距离，减速后的位置至少快一步。

Automatically configure the parking space, and quickly lower it in less than a circle. After configuration, the machine will automatically calculate the inertia distance of the machine, and the position after deceleration will be at least one step faster.

5.  系统的关键站传感器信号自动计算和识别。通过简单的操作启动按钮就可以遇到成型失败，系统根据传感器自动跟踪信号，使模具迅速停在两个加热器中间。

The system automatically calculates and identifies the key station sensor signals. By simply operating the start button, you can encounter molding failure. The system automatically tracks the signal according to the sensor and quickly stops the mold between the two heaters.

6.  停止杯自动取出。机器异常停止后，由于加热器烧坏且胶粘剂不牢固，系统会自动移除加热器和支架位置。

Stop cup automatically removed. After the machine stops abnormally, due to the heater burning out and the adhesive not being strong, the system will automatically remove the heater and bracket position.

7.  加热系统智能温控。通过PLC PID控制温度，用户只需选择纸张制造商，重量，单/双PE，系统就会自动设置相应的目标温度，并且当目标温度自动调整时机器的速度会发生变化。用户还可以自定义目标温度控制。

Heating system intelligent temperature control. Through PLC PID control temperature, users only need to select paper manufacturer, weight, single/double PE, the system will automatically set the corresponding target temperature, and the speed of the machine will change when the target temperature is automatically adjusted. Users can also customize the target temperature control.

8.  （选装） 视觉系统缺陷检测。自动识别纸杯形状，内部，底部瑕疵，自动清除。独特的算法，浅灰色污渍识别准确，稳定。一键快速设置参数，还可以详细修改每个参数。系统支持内部网络监控输出报告。

8. (Optional) Visual system defect detection. Automatically identify paper cup shape, interior, bottom defects, and automatically remove them. Unique algorithm, light gray stains are accurately and stably identified. One-click quick setting of parameters, and detailed modification of each parameter is also possible. The system supports internal network monitoring and output reports.

9. 硬件监控系统。plc输出点，继电器，接触器，plc和触摸屏，plc和计算机，plc具有扩展的线路实时监控功能，触摸屏中的异常报警提示故障原因。详细的硬件和软件故障信息，用户可以根据提示轻松进行故障排除。

9. Hardware monitoring system. PLC output points, relays, contactors, PLC and touch screen, PLC and computer, PLC has extended line real-time monitoring function, abnormal alarm in the touch screen prompts the cause of the fault. Detailed hardware and software fault information, users can easily troubleshoot according to the prompts.
