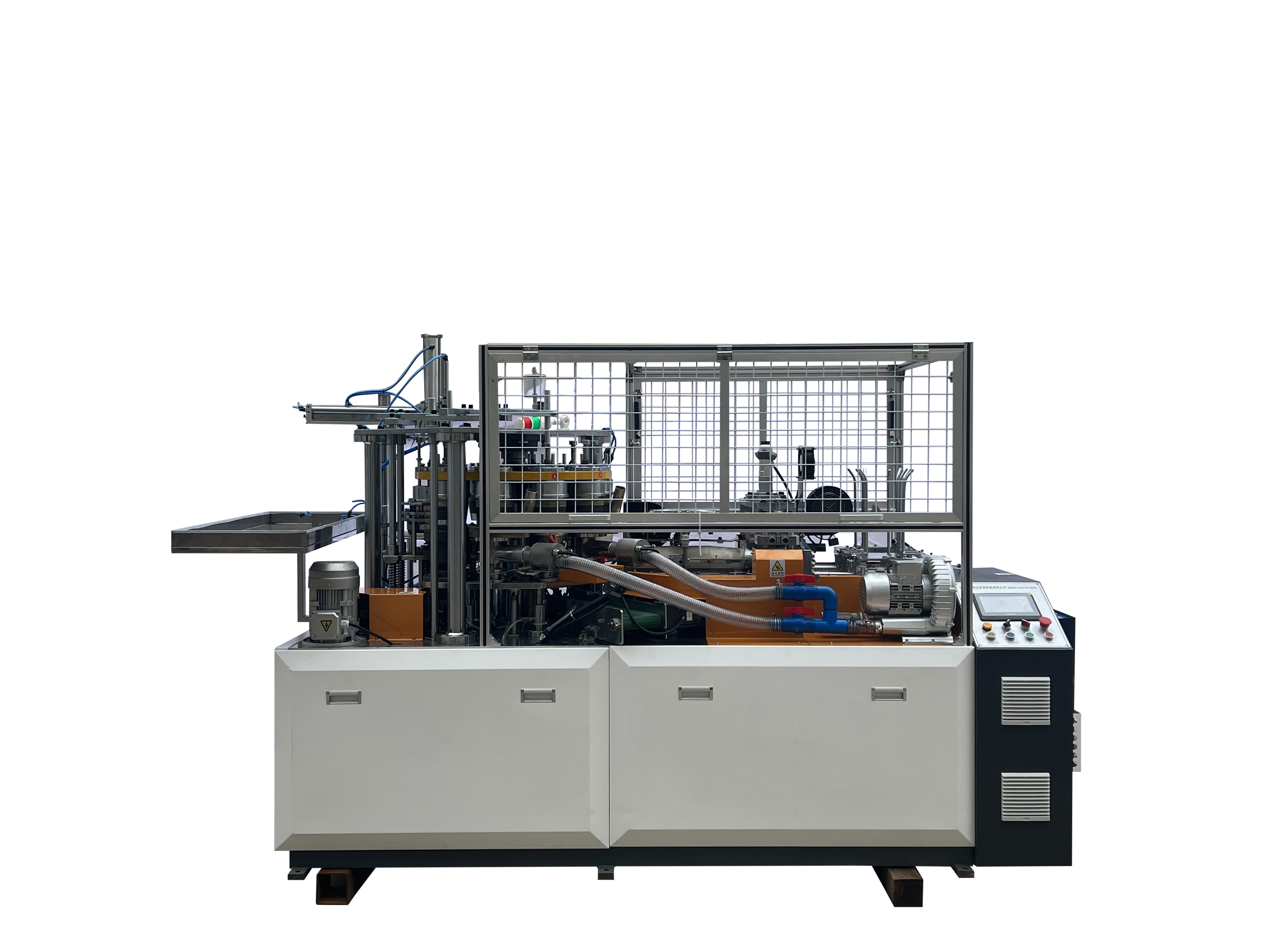

this is a paper bowl machine for small bowls
paper bowl height under 125mm,bottom under 125mm can make on this machine
machine is gear cam system,auto oiling,and speed 60-70pcs/min table running
machine equiped with ultrasonic,robot hand collection,PLC,touch screen,hot air bottom knurling
if you like it,contact me
|
Name |
Paper bowl machine |
|
Max Paper bowl Size :
|
1200ml
|
|
Raw Material |
One-side or two-side PE coated paper(Singe PE or Double PE coated paper) |
|
Speed |
60-70 pcs/min |
|
Suitable paper weight |
200-330g/㎡；±20g/㎡ |
|
Voltage supply |
380V，50HZ |
|
cup size |
Bottom80-125mm，top100-145mm，higstrong25mm |
|
Working Air Source |
0.6-0.8Mpa; 0.4m³/min |
|
General power |
12 kw |
|
Net weight |
3000kg |
|
Measurement (mm) |
L:2350mm;W:1320mm;H:1900mm
|
|
We can customize machine and mold according to customer’s requirement. |
|
